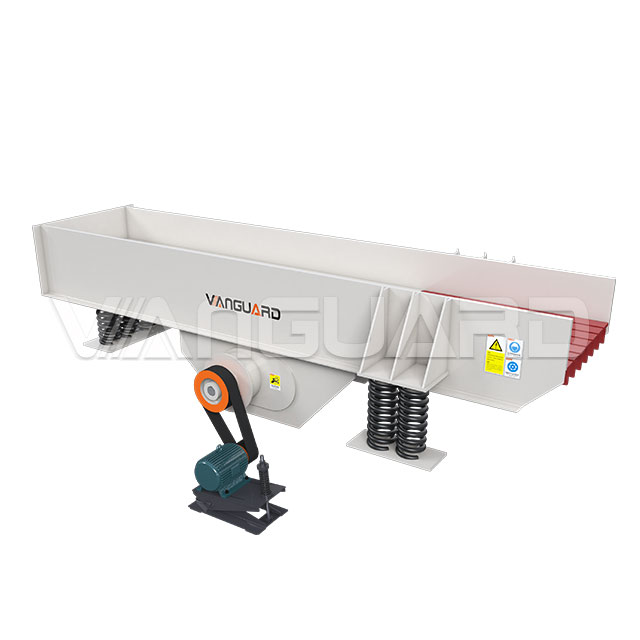

zsw series vibrating feeder
Grille
The grille gap can be adjusted as needed, and the back panel is removable to simplify maintenance and extend service life;
gear
High-strength and high-precision gears enable the machine to work stably;
engine
Well-known engine brand, customers can choose Siemens brand;
Oil level display
Customers can observe the amount of lubricating oil.
Technical Parameters
|
model |
Specifications (mm) |
Maximum feeding size (mm) |
Speed (rpm) |
Output (t/h) |
Power (kW) |
Weight(kg) |
|
ZSW3090 |
900x3000 |
400 |
600~850 |
90-180 |
11 |
3450 |
|
ZSW3896 |
960x3800 |
500 |
600~850 |
120-210 |
15 |
4450 |
|
ZSW4211 |
1100 x4200 |
650 |
600~850 |
180-400 |
15 |
4750 |
|
ZSW4911 |
1134x4960 |
650 |
600~850 |
250-480 |
22 |
5350 |
|
ZSW5911 |
1134x5960 |
600 |
600~851 |
300-550 |
22 |
6350 |
|
ZSW6013 |
1288x6000 |
750 |
600~850 |
340-600 |
30 |
6800 |
|
ZSW6015 |
1524x6000 |
1000 |
600~850 |
400-800 |
37 |
7050 |
|
ZSW6018 |
1804x6000 |
1000 |
600~850 |
450-900 |
37 |
8669 |
