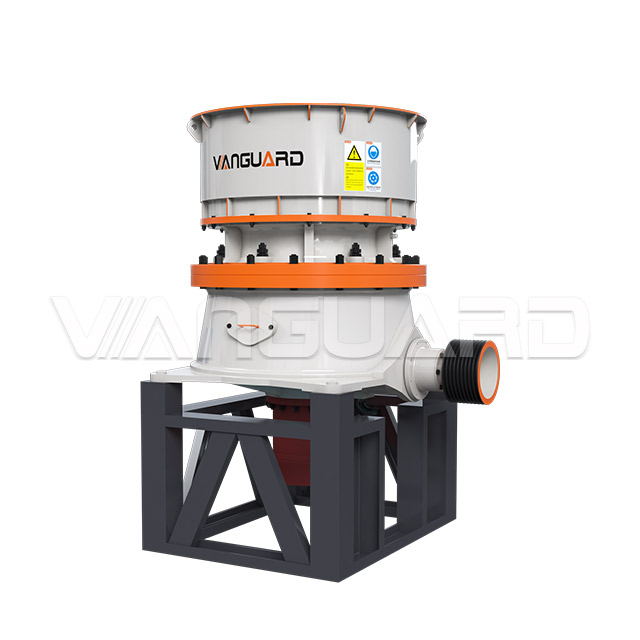

CS/CH series single cylinder hydraulic cone machine

Summary:

CS/CH series single cylinder hydraulic cone crusher is a modern high performance spring cone crusher with high swing frequency, optimized cavity type and reasonable stroke, designed and developed by Anbang Machinery on the basis of introducing and absorbing foreign technology, according to customer needs, based on the principle of laminated crushing and the concept of more crushing and less grinding. The new crusher structure, combined with the optimized laminated crushing cavity type and the fully intelligent automatic control system, makes the CS/CH series single cylinder hydraulic cone crusher have incomparable performance characteristics of traditional cone crushers: a variety of optional cavity types, high crushing efficiency, low production cost, easy adjustment and maintenance, and the product particle shape is cubic, which can be widely used in medium crushing, fine crushing and ultra-fine crushing operations.

Features:

Higher reliability

The frame is designed to be heavy-duty and made of first-class steel. The liner is made of high-quality high-manganese steel composite material, which is more wear-resistant. The spindle with an extra-large diameter is more durable.

Lower production costs

Anbang Machinery reduces the unit steel wear of crushing equipment to the lowest level based on its (crushing chamber type) design experience and advanced metallurgical technology. It selects an automatic control system to enable the crusher to feed fully in the chamber and automatically compensate for the tooth plate gap during operation, thereby improving the working efficiency of the crushing equipment and ensuring that the unit production cost is reduced to the lowest level.

Wider applicability

This series of cone crushers has a larger feed opening, which can maximize performance to adapt to various crushing processes and is widely used in medium to ultra-fine crushing, and fixed to mobile crushing stations. The perfect combination of optimized crushing speed, eccentricity (stroke) and cavity design can provide higher output and better product quality;

Better particle shape

CS/CH series single cylinder hydraulic cone crusher uses the principle of laminated crushing to crush materials, with high crushing efficiency and low wear of wearing parts; the finished product after crushing is cubic with high fine particle content, which can well meet the current demand for some high-quality aggregates.

Technical Parameters

model	Power (kW)	Cavity Type	Maximum feed size (mm)	Capacity (t/h) running in CSS state ( mm )
model	Power (kW)	Cavity Type	Maximum feed size (mm)	Capacity (t/h) running in CSS state ( mm )
CH820	90			6	8	10	13	16	19	22	25	32	38	44	51
		EC	135			55	100	105	115	120	130	145
		C	90			60	405	110	120	125	135	80
		M	65		50	85	90	90	70
		MF	50	40	75	80	80	60
		F	38	60	60	65	55	45
		IF	28	30-40 (screening rate 80%, less than 4.5-5.5mm)
CH830	160			6	8	10	13	16	19	22	25	32	38	44	51
		EC	190				125	170	185	196	210	240	240
		C	145			85	150	165	175	185	200	225	170
		MC	115			65	160	175	185	200	210	165
		M	90		75	100	150	165	175	185	175	120
		MF	75		70	120	130	145	145	130	105
		F	50	90	95	100	110	120	120	110	90
		IF	35	70-90 (screening rate 80%, less than 5-5.6mm)
CH840	250			6	8	10	13	16	19	22	25	32	38	44	51
		EC	215					200	276	294	313	357	395	384
		C	175				101	218	292	312	332	378	335	229
		MC	140				122	262	282	301	320	328	242
		M	110				187	278	298	318	339	281	194
		MF	85			114	227	245	263	281	299	248
		F	70		135	176	191	206	221	236	251	208
		IF	38	100-125 (screening rate 80%, less than 6-7.5mm)
CH860	315			6	8	10	13	16	19	22	25	32	38	44	51
		EC	275					177	338	436	464	547	605	662	511
		C	215					190	367	480	501	582	643	512	353
		MC	175					253	426	455	484	552	499	364
		M	135					295	440	470	500	502	403
		MF	115				192	369	396	423	450	451	363
		F	85				304	328	352	376	400	401	323
		IF	65				293	316	298	290
CH870	500			13	16	19	22	25	32	38	44	51	57	64	70
		EC	300				588	849	968	1070	1172	1291	1393	1512	1331
		C	240			406	636	893	1018	1125	1232	1357	1464	1461	1286
		MC	195			440	723	837	954	1055	1155	1272	1373	1370	1206
		M	155			563	786	836	953	1054	1154	1271	1372	1248	1098
		MF	100		424	716	765	814	928	942	789	702
		F	90	395	656	704	752	800	912	857	718
		IF	80	517	558	598	639	680	775	128	669
CH880	750			13	16	19	22	25	32	38	44	51	57	64	70
		EC	370					459	1309	1446	1584	1745	1883	2043	2181
		C	330				397	774	1404	1552	1700	1873	2020	2193	2140
		MC	300			513	852	1232	1404	1552	1700	1873	2020	2005	1739
		M	230		312	670	951	1106	1261	1394	1526	1681	1814	1800	1564
		MF	160	204	514	690	921	980	1117	1235	1352	1490	1607	1396	1170
		F	120	289	669	838	895	952	1085	1165	1051	827	625
