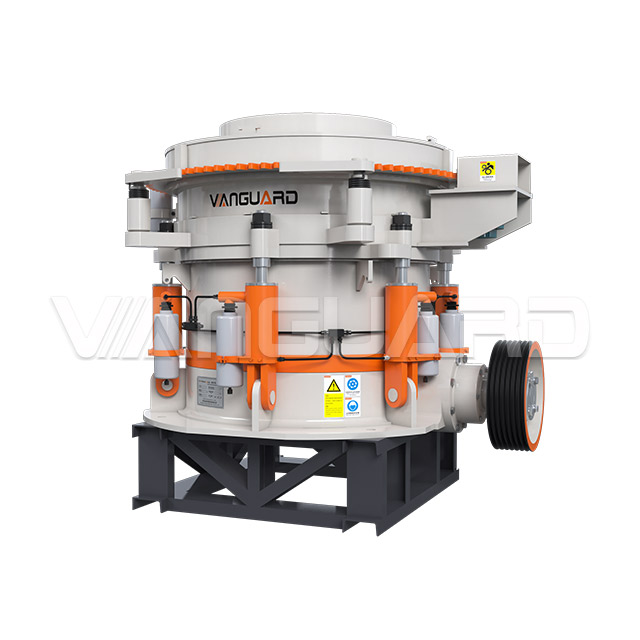

cp series multi-cylinder hydraulic cone machine
Summary:
CP series multi-cylinder hydraulic cone crusher is mainly used for secondary and tertiary crushing in the processing of metal ore, construction sand and stone. Due to its strong crushing capacity and large output, it is more often used for the crushing of medium-hard materials.
Features:
Large output and good grain shape
High production capacity, the same size can be increased by 30-40%; the product particle shape is good and the particle size distribution is uniform;
Automatic and accurate setting adjustment
Equipped with a hydraulic motor to drive the fixed tooth plate components to implement automatic and accurate adjustment of the discharge port, which is automatically fixed by the locking hydraulic cylinder after adjustment;
Automatic cavity clearing
By releasing the oil cylinder, the blockage in the crushing chamber can be cleared in time, greatly shortening the downtime;
Heat-treated steel structure
The steel structure body has been heat-treated, making it stronger and more durable; the labyrinth combined with grease-sealed bearings is safe and reliable.
Technical Parameters
| model | Cavity Type | Maximum feeding size (mm) | Minimum discharge opening size (mm) | Motor power (kW) | Output (TPH) of closed edge discharge (mm) | Weight (kg) | ||||||||
| 13 | 16 | 19 | 22 | 25 | 32 | 38 | 45 | 51 | ||||||
| CP100 | C | 135 | 16 | 75-110 | 75-85 | 85-95 | 85-100 | 90-110 | 100-130 | 6800 | ||||
| M | 105 | 16 | 75-110 | 55-70 | 65-80 | 70-85 | 75-95 | 90-110 | ||||||
| CP200 | C | 185 | 19 | 110-160 | 180-210 | 220-240 | 235-270 | 265-310 | 12000 | |||||
| M | 145 | 17 | 110-160 | 145-165 | 160-195 | 185-220 | 210-245 | 230-280 | ||||||
| F | 70 | 13 | 110-160 | 90-110 | 105-125 | 120-135 | 125-140 | 130-150 | 140-165 | |||||
| CP300 | C | 210 | 22 | 185-220 | 210-240 | 230-180 | 270-320 | 290-350 | 360-430 | 18700 | ||||
| M | 185 | 19 | 185-220 | 190-220 | 205-230 | 225-260 | 245-285 | 300-350 | ||||||
| F | 90 | 16 | 185-220 | 135-155 | 150-170 | 165-185 | 180-200 | 200-220 | ||||||
| CP400 | C | 290 | 25 | 220-315 | 295-355 | 335-375 | 430-500 | 470-550 | 28400 | |||||
| M | 210 | 22 | 220-315 | 265-340 | 290-330 | 315-360 | 350-410 | |||||||
| F | 110 | 16 | 220-315 | 155-185 | 175-200 | 195-225 | 210-245 | 235-256 | ||||||
